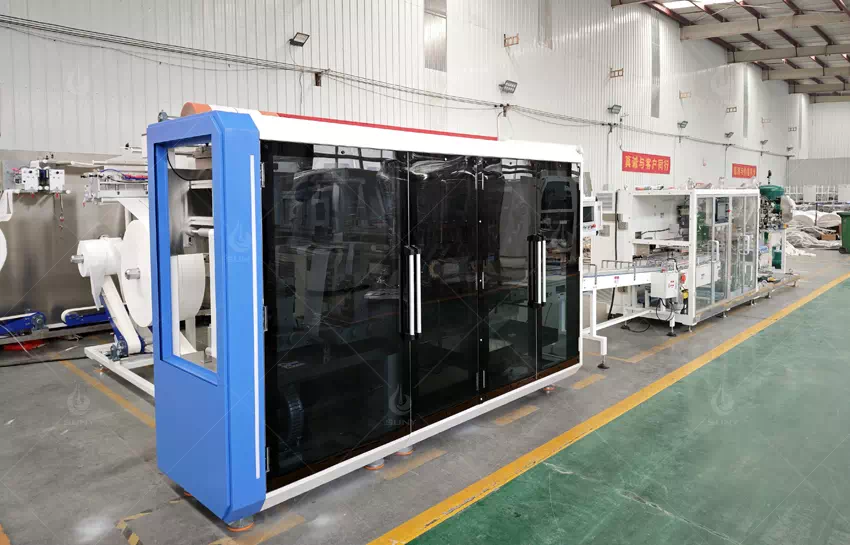

High-Speed Mini Wet Wipe Packaging Machine SYP-M60

The Mini Wet Wipe Packaging Machine is an automated system designed for high-speed wet wipe production. It handles the folding of non-woven fabric, counting and stacking, liquid application, and integration with the upstream packaging process. Suitable for the continuous industrial production of small-pack wet wipes containing 7–110 sheets, it offers stable mass production capabilities in the personal care and disposable cleaning products sectors.

Core Structure and Material Compatibility

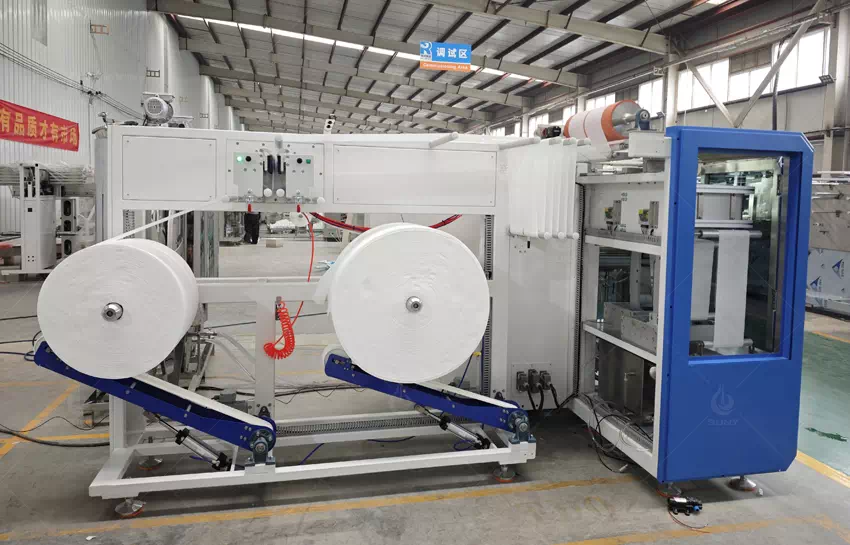

The equipment, model SYP-M60, supports spunlace non-woven fabrics as well as various eco-friendly materials such as flushable and biodegradable varieties. The non-woven roll feed system features a dual-shaft design, with one shaft in use and one on standby, enabling automatic splicing without stopping the machine and thus avoiding efficiency losses caused by production interruptions.

The folding system supports both Z-fold and W-fold modes, with the dimensions stabilising within the 30 × 30 mm range after folding. This ensures neat stacking and provides a consistent foundation for high-speed packaging in the downstream process.

Production Capacity and Key Process Parameters

The core advantage of the SYP-M60 lies in its high-density continuous production capability. Its stacking speed reaches 800–1,100 sheets per minute.

In terms of liquid application, the equipment supports both soaking and spraying modes, allowing the uniformity of liquid penetration to be adjusted according to different wet wipe functions (such as baby care and disinfectant cleaning), thereby reducing issues of localised dry or wet patches.

When integrated with a packaging machine, it achieves a matching speed of up to 110 packs per minute, suitable for small packaging sizes ranging from 60 × 40 × 60 mm to 120 × 60 × 60 mm. This design enables it to reliably support the packaging requirements for mini packs, portable packs and e-commerce fast-moving consumer goods.

Application Scenarios and Value to Production Systems

The SYP-M60 is primarily used as a core front-end machine in small-pack wet wipe production lines. It is compatible with a variety of heat-sealable packaging materials, including CPP, OPP, PE and PET, and can integrate seamlessly with mainstream wet wipe packaging machines to form a complete automated production loop.

In actual production, this type of equipment minimises the need for manual intervention, particularly in scenarios involving high-frequency orders (such as 7-piece, 10-piece and 80-piece portable packs). It significantly enhances the stability of output per unit of time whilst reducing errors caused by manual stacking.

Should you be interested or require further information, please do not hesitate to contact us for more detailed documentation.
