Alcohol Swab Preparation Machine

The Alcohol Swab Preparation Machine is specialized equipment designed to produce alcohol swabs and disinfectant wipes continuously. Through processes such as non-woven fabric unwinding, folding, metered liquid dispensing, cutting, and packaging, it transforms raw material rolls into individual products with uniform dimensions and consistent liquid content—making it ideal for medical and hygiene product manufacturing environments requiring continuous production.

Continuous Processing from Raw Material to Finished Product

The core function of this equipment is not merely to perform the “alcohol dispensing” step, but to integrate multiple stages—where manual errors are prone to occur—into a single machine. The SYP-460 Alcohol Swab Making Machine utilizes 45–50g/m² spunlace non-woven fabric (with a width of approximately 60mm) as its primary raw material. Upon entering the machine, the material undergoes unwinding and a “half-fold” (1/2 fold) process, followed by cutting to preset dimensions and liquid application via a metered dispensing system.

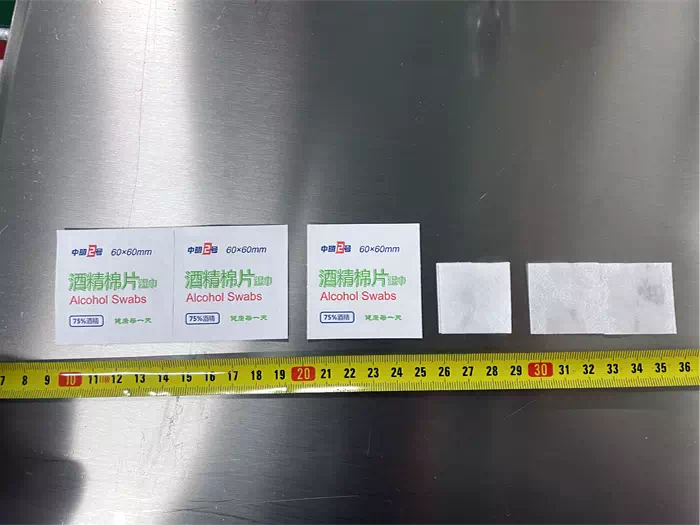

The folded non-woven fabric measures approximately 30×30mm, while the finished package dimensions can be adjusted via the touchscreen according to product specifications. The machine features PLC control, servo motors, and a color touchscreen; production parameters are managed centrally within the control system, ensuring stable synchronization between operations such as cutting and material feeding. According to official data, the packaging speed reaches 100–125 cuts per minute, equating to approximately 400–500 packs per minute.

A crucial design detail often overlooked is that the consistency of the liquid dispensing volume is more important than simply maximizing speed. Alcohol swabs are small-format products; even minor deviations in liquid volume per unit can significantly impact raw material consumption when aggregated over tens or hundreds of thousands of units. Consequently, the machine is equipped with an adjustable metered liquid dispensing system, allowing manufacturers to fine-tune the liquid volume based on specific product requirements.

SYP-460 Alcohol Swab Machine Specifications

The SYP-460 measures approximately 2900×1050×1600mm, weighs around 700kg, and has a total power rating of 2.5kW; it operates without the need for an external air compressor. The substantial weight of the machine frame is not intended merely to increase the equipment’s size, but is designed to counteract mechanical vibrations generated during high-speed cutting and feeding operations. For small-sized cotton pads, significant equipment vibration can easily compromise feeding accuracy and cutting consistency; therefore, the stability of the machine frame is directly linked to the precision of the finished product’s dimensions.

The unwinding, folding, and cutting mechanisms—critical to the production process—feature stainless steel construction, with anti-corrosion treatments applied to specific metal components. The overall design is optimized for continuous operation rather than merely serving as an aid for small-batch manual production.

For manufacturers producing items such as alcohol prep pads and alcohol swabs, the value of the SYP-460 lies in its integration of raw material handling, dimensional control, and precise liquid dosing into a continuous production workflow; this minimizes manual intervention while facilitating the standardization of product specifications.
