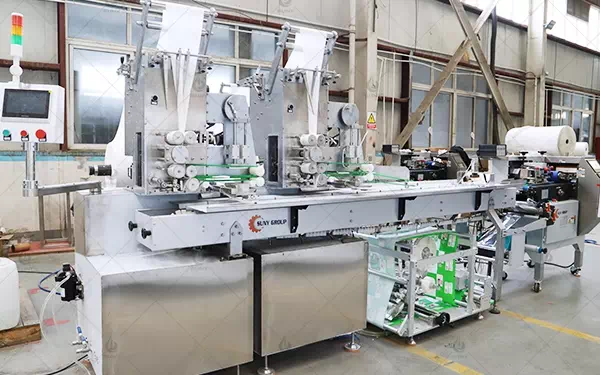

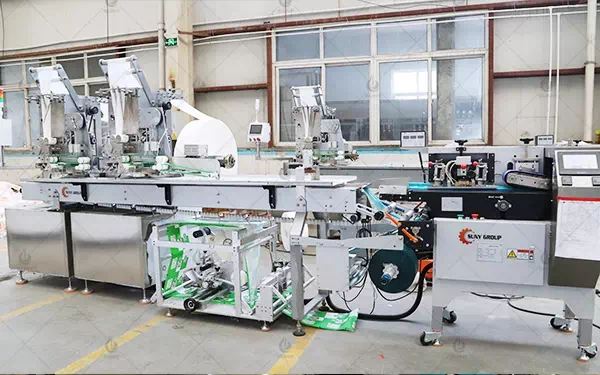

PHOTOS OF SY-260 WET WIPES MACHINE
This wet wipes making machine is suitable for 1-10 pieces of wet wipes, its operation is simple and stable. All the processes are completed on the machine from raw materials to finished products,and fastly and healthily.
FINAL PRODUCT
Width: 50-70mm; Length: 50-135mm
Folding method: 4-6 fold horizontally, fold in half lengthwise
1-10pcs wet wipes can be produced, and the number of wet wipes can be set according to your need.

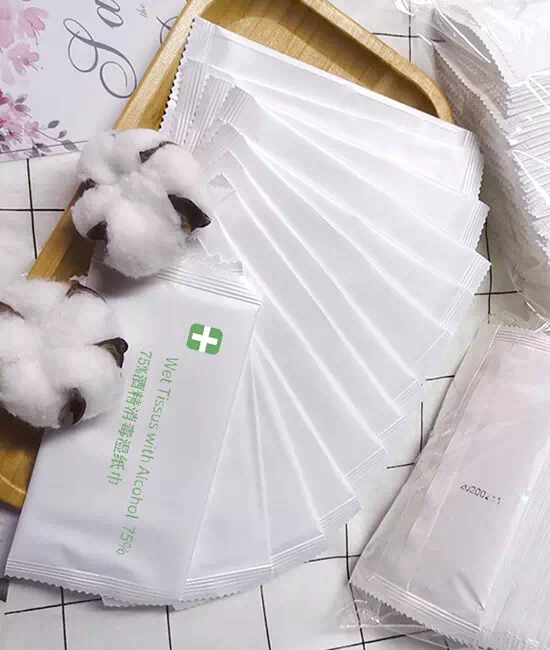

1 Pcs/bag Wet Wipes

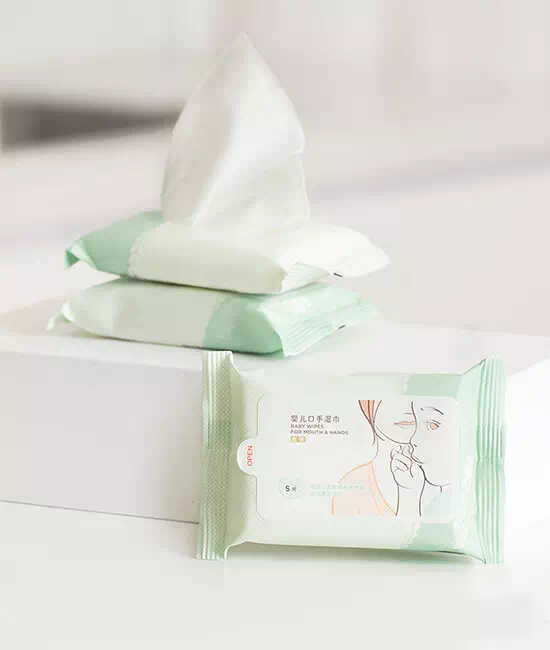

5 Pcs/bag Wet Wipes

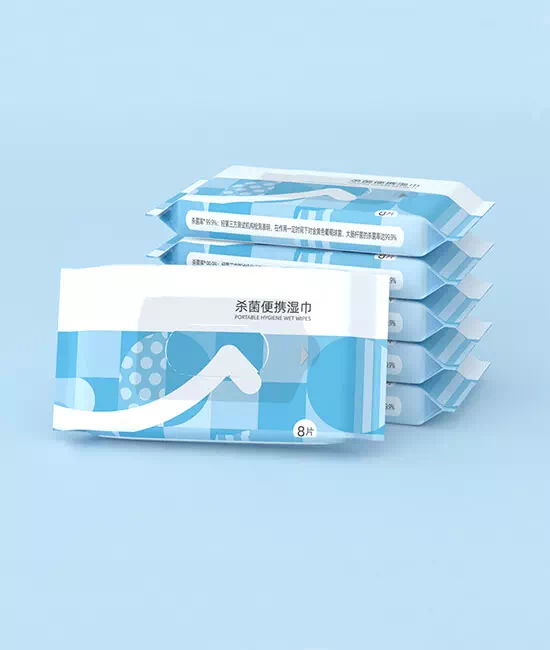

8 Pcs/bag Wet Wipes
10 Pcs/bag Wet Wipes
EQUIPMENT LAYOUT

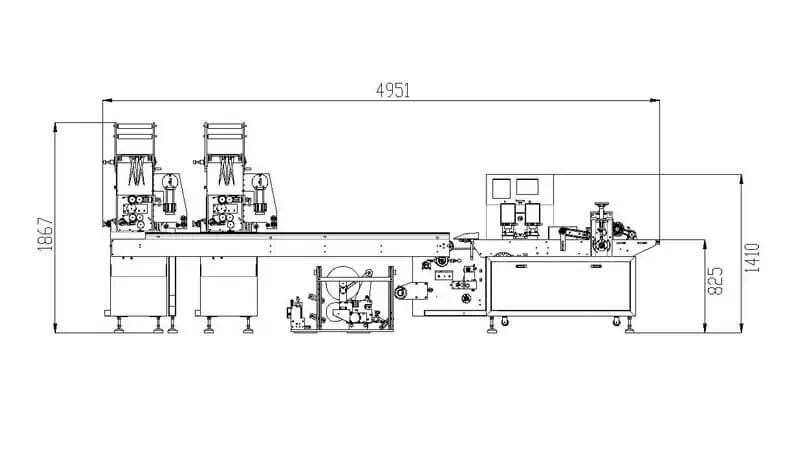

Front view

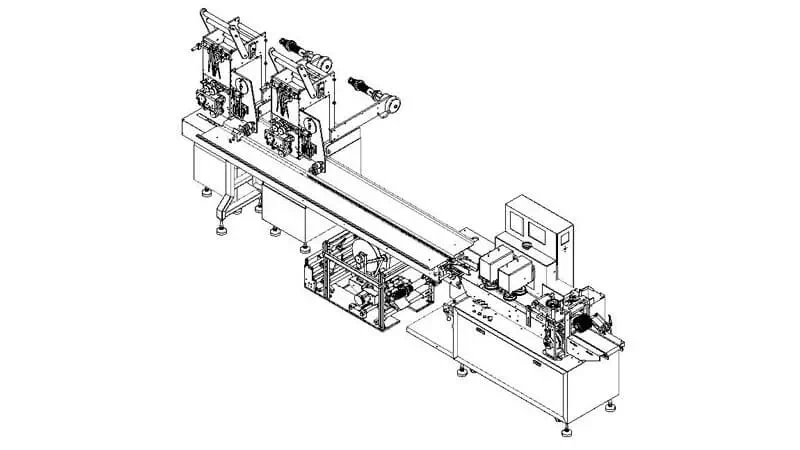

Oblique view

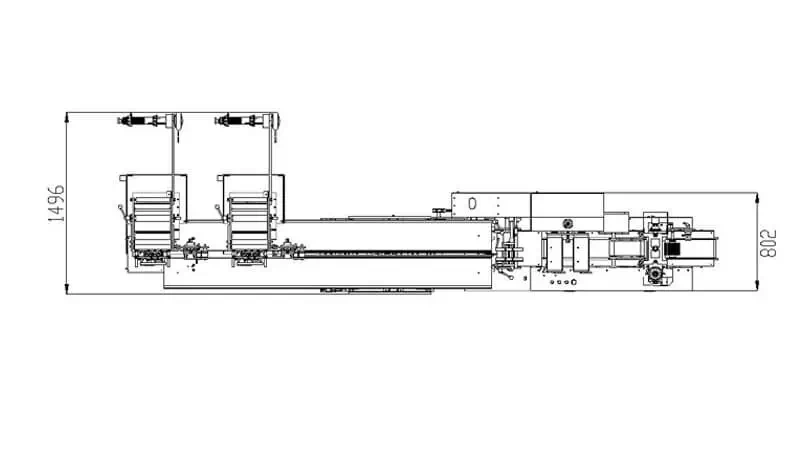

Top view

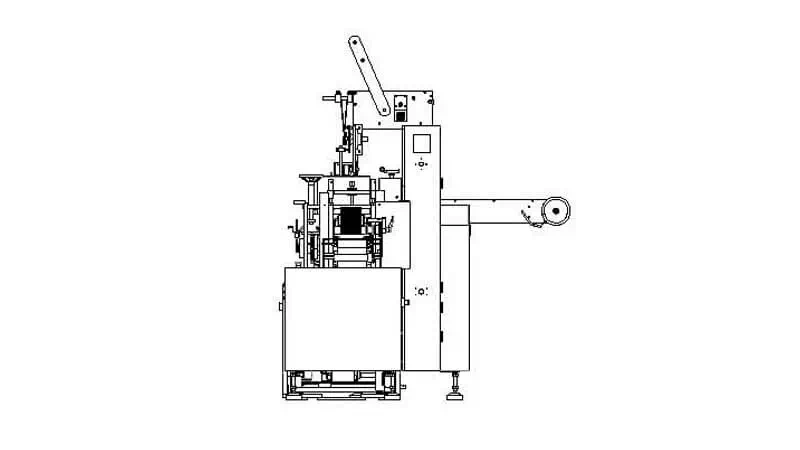

Side view
SYSTEM COMPOSITION
The workflow of the SY-260 automatic wet wipe packaging machine is to fold the base paper, add liquid,cut the length, count the stack, and then automatically transfer it to the packaging machine for packaging.

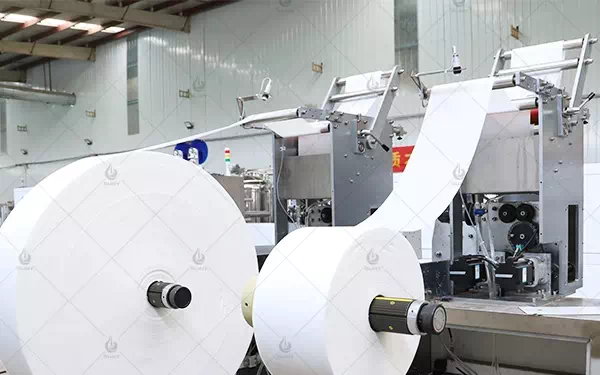

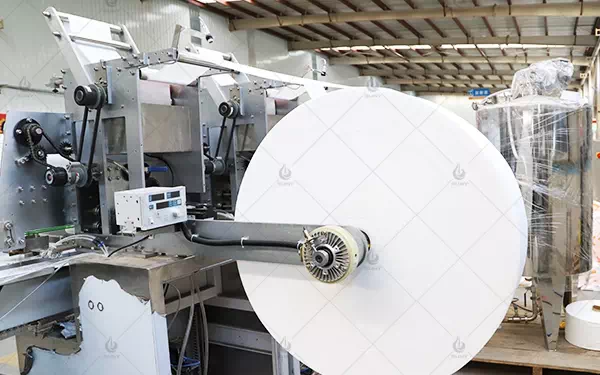

Nonwoven Fabric Feeding

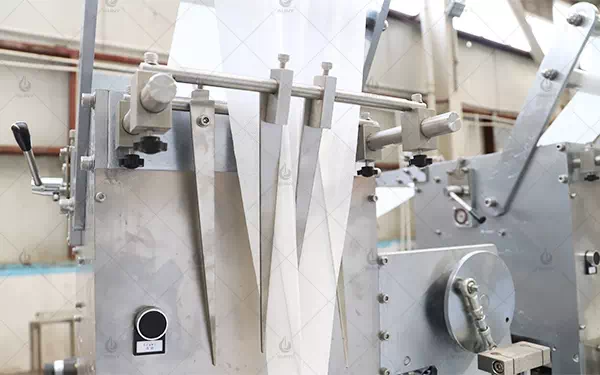

Nonwoven Fabric Folding

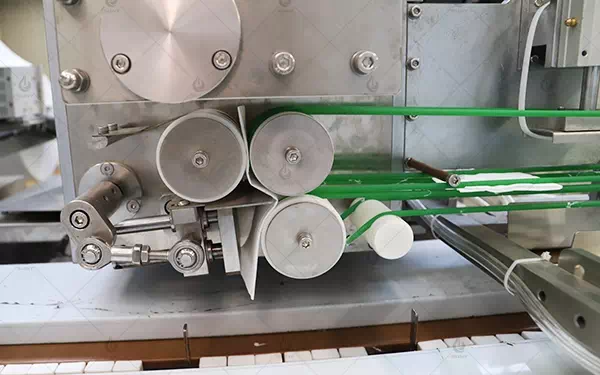

Cutting and Stacking

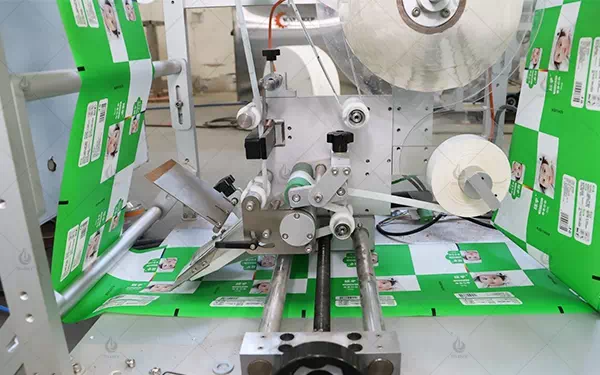

Punching and Labeling of Packaging Film

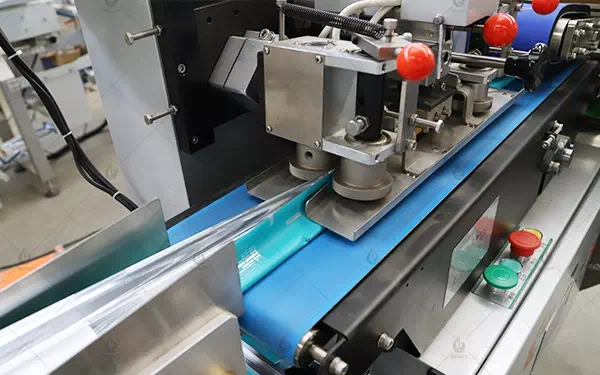

Folding Welding of Packaging Film
Sealing and Cutting
TECHNICAL PARAMETERS
| Model | SY-260 |
|---|---|
| Folding method | 4-6 fold horizontally, fold in half lengthwise |
| Wet Wipes Unfolded Size | Length (120-200)*Width (100-300) mm |
| Wet Wipes Folded Size | Length (45-65)*Width (60-100) mm |
| Speed | 600 tablets/min or 60 packs/min |
| Total Power | AC220V 50HZ/60HZ 8KW (Can be customized) |
| Gas Source | 0.4MPA-0.6MPA Air consumption: 0.1m³/min |
| Weight | 1200 Kg |
| Dimension | 4878×1600×1563mm |
| Material of Wet Wipes | Spunlace non-woven fabric |
| Parent Roll Specification | Maximum diameter: 1100mm, Width: (100-300) mm |
| Package Dimensions | (50-70)*(50-135) mm |
| Sticker Size | Standard 30-70mm(Can be customized) |
| Hole Size | Standard 20-40mm(Can be customized) |
