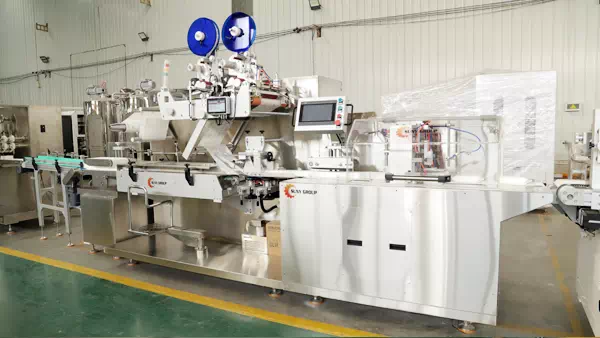

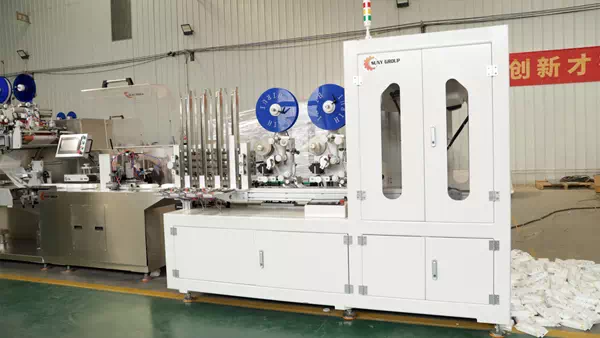

30-120 Pcs/Bag 12 Lanes Wet Wipes Production Line
SYF-12 big pouch wet wipes machine can meet the needs of enterprises for high production capacity.
Packaging speed: 4200-5040 tablets/min or 420 cut/min
Packaging size: length: 150-230mm, width: 100-120mm, hight: 20-80mm
Folding Method: N type single pumping, C type single pumping

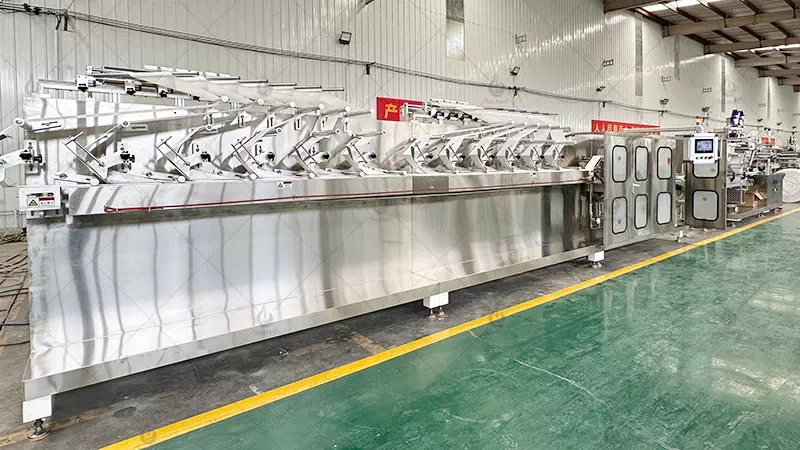

The whole 12 lines wet wipes production line is fully automatic, and only1-2 people are needed to assist the supervisor, designed to be simple, time-saving and user-friendly. Easy for operation and maintenance.
Width: 100-120mm; Length: 150-230mm; Hight: 20-80mm
Folding Method: N type single pumping, C type single pumping
This SYF-12 removable wet wipes production line is used to produce disposable household cleaning wet wipes or baby wipes, such as baby hand wipes, toilet wipes, etc.

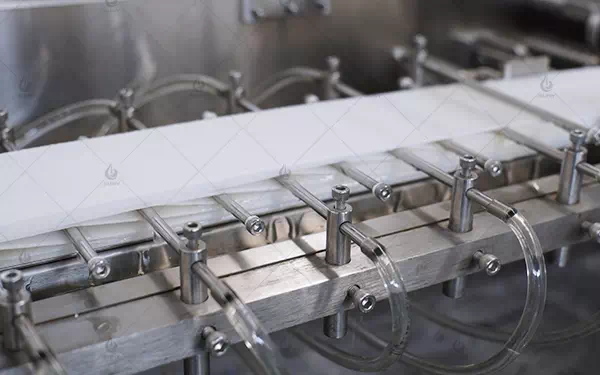

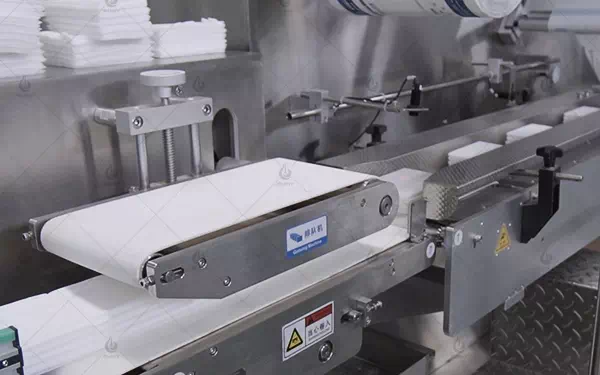

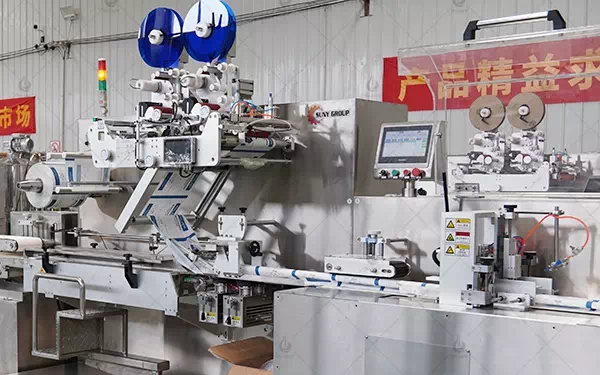

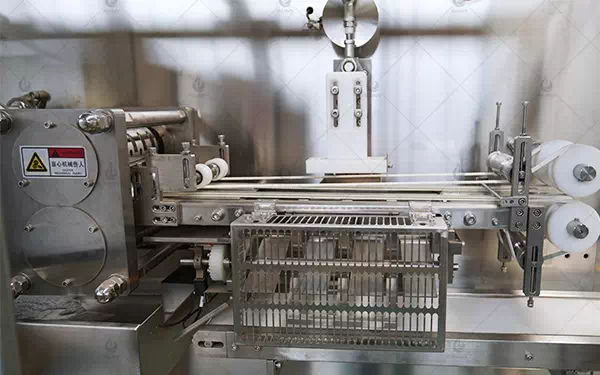

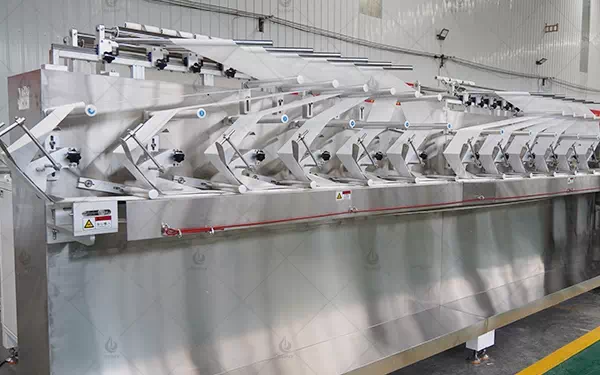

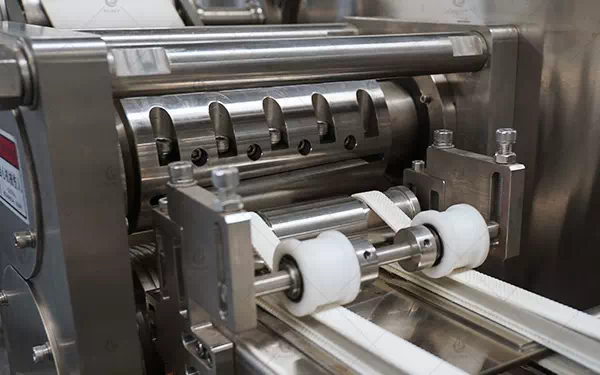

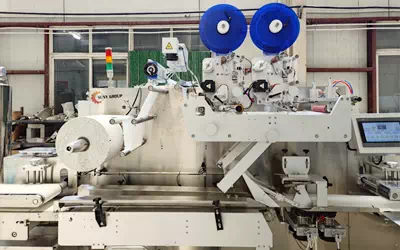

Unrolling raw material → folding → wetting → cutting in size → pile and counting wipe → transfer wipe to packing → output finished products. All the processes are finished on the machine. Production speed is high and sanitary.
| Model | SYF-12 |
|---|---|
| Folding method | N type single pumping, C type single pumping |
| Wet Wipes Unfolded Size | Length (100-180)*Width (90-200) mm |
| Wet Wipes Folded Size | Length (100-180)*Width (90-110) mm |
| Speed | 4200-5040 tablets/min or 420 cut/min |
| Total Power | AC380V 50/60HZ 28KW (Can be customized) |
| Gas Source | 0.6MPA-0.8MPA Air consumption: 0.2m³/min |
| Material of Wet Wipes | Spunlace non-woven fabric |

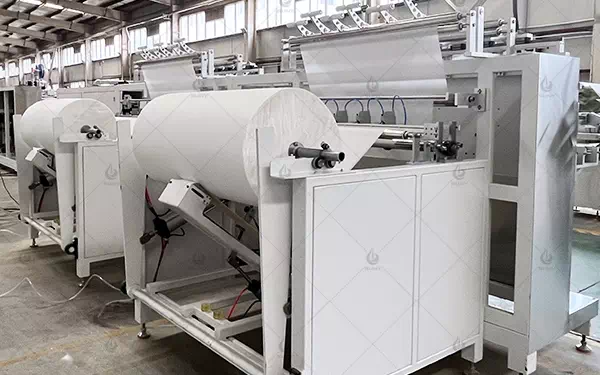

| Parent Roll Specification | Maximum diameter: 1100mm, Width: (200-1200) mm |
| Packaging Material Specification | Diameter 350mm, maxwidth: 350 mm |
| Package Dimensions | Length(150-230)*Width(100-120)*Height(20-80)mm |

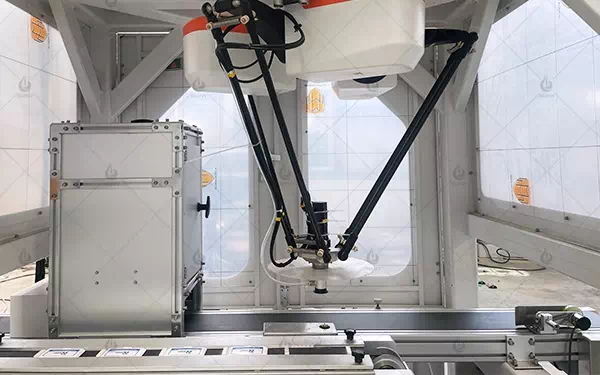

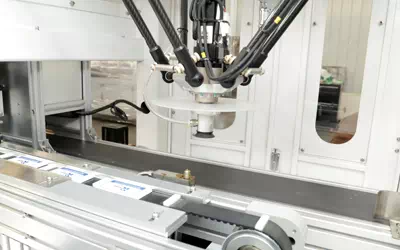

| Sticker Size | Standard 35-50mm(Can be customized) |
| Hole Size | Standard 20-40mm(Can be customized) |
| Sticker Thickness | 0.6mm-0.08mm |
