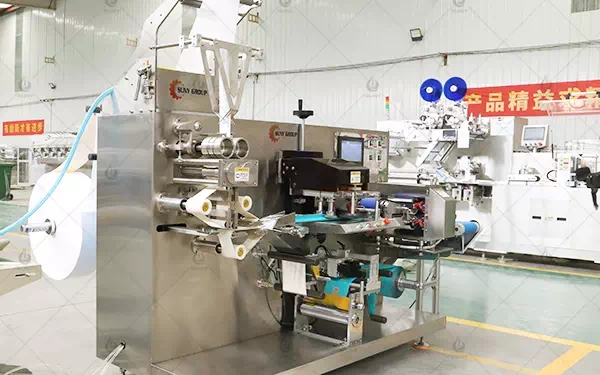

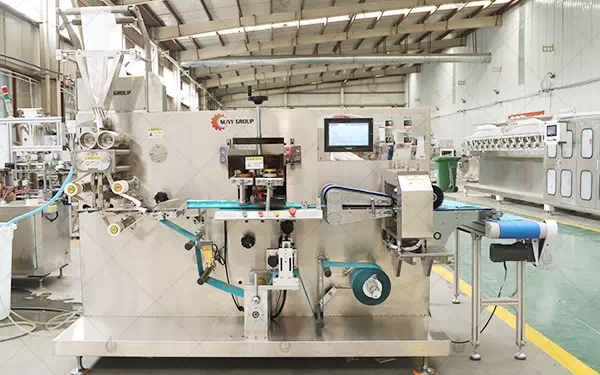

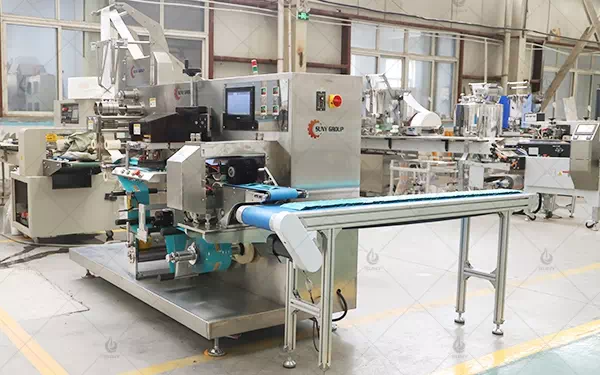

Back Sealing Single Wet Wipes Machine
Full automatic back seal single wet wipes packing machine is specially designed for wet tissue packing. Adopt vertically folding, feeding film underneath, it runs fast and stably.
Packaging speed: 120-200 packs/min (Depends on final product)
Packaging size: length 50-170mm and width 50-100mm ( Can be adjusted )
Edging form: Pair fold
Full automatic back sealing single piece wet wipes making machine can automatically complete: folding wet tissue,cutting, spraying medicine liquid, slitting, bag forming, sealing,counting, printing batch number, finished product output ect.
Width: 50-100mm; Length: 50-170mm
Folding Method: Pair fold

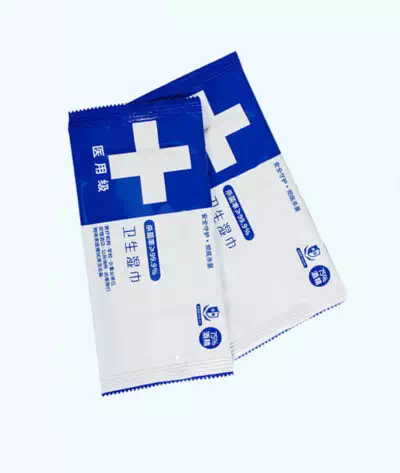

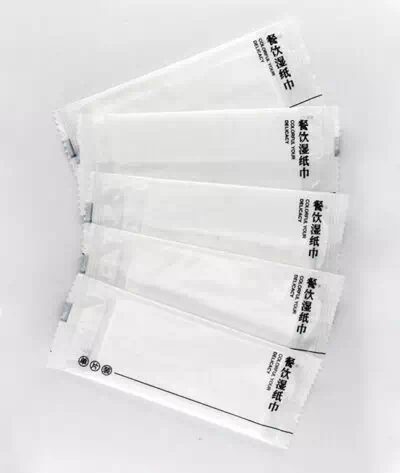

The Back seal wet wipes making machine is suitable for the production various kind of back sealing wet wipes/tissue, personal hygiene wipes, alcohol swabs/pads, etc.

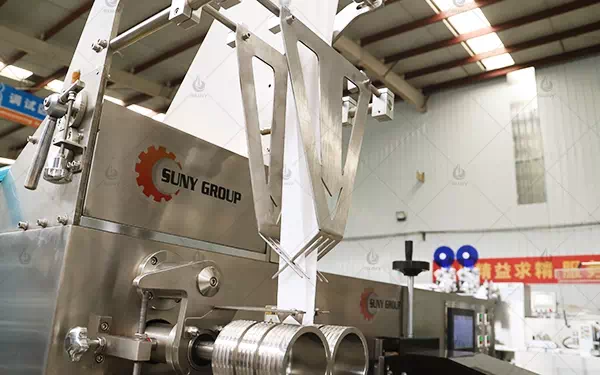

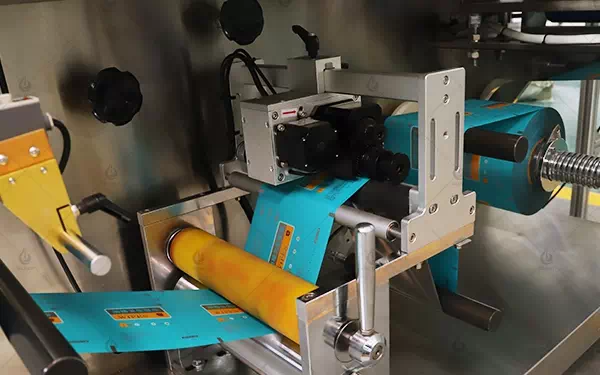

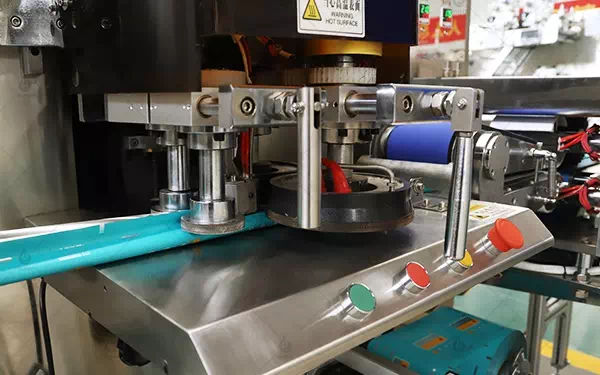

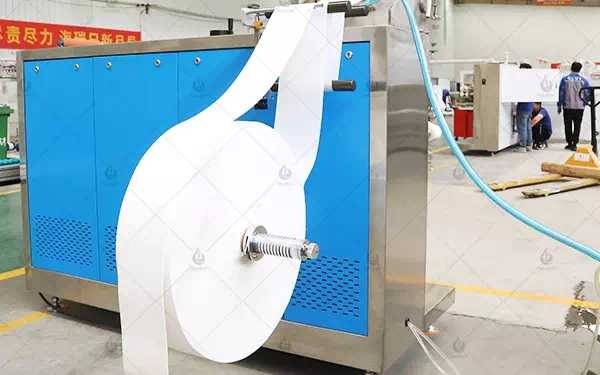

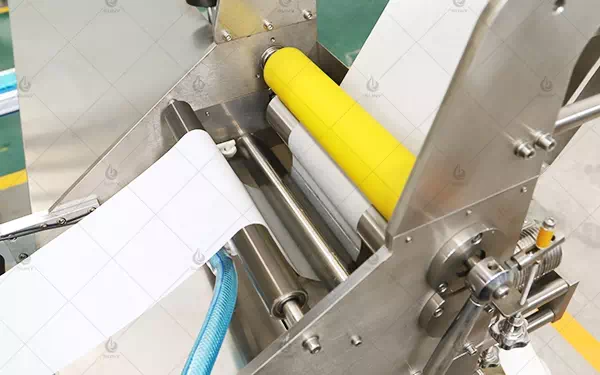

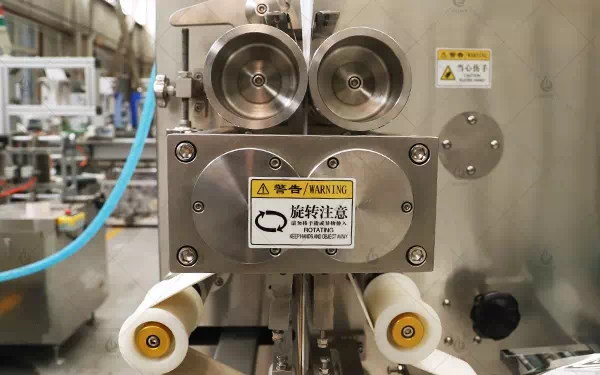

The Single back seal wet wipes machine consists of wet wipes folding, adding liquid, cutting and folding,bagging, sealing and other structures.The whole process is completed automatically without manual participation.The production speed can reach morethan 200 tablets/minute.
| Model | SY-250 |
|---|---|
| Folding method | Pair fold |
| Wet Wipes Unfolded Size | Length (80-280)*Width (80-280) mm |
| Wet Wipes Folded Size | Length (30-140)*Width (40-90) mm |
| Speed | 120-200 packs/min (Depends on folding size, folding method and packaging film) |
| Total Power | AC220V 50HZ/60HZ 2.5KW |
| Gas Source | No need for air compressor |
| Weight | 700 Kg |

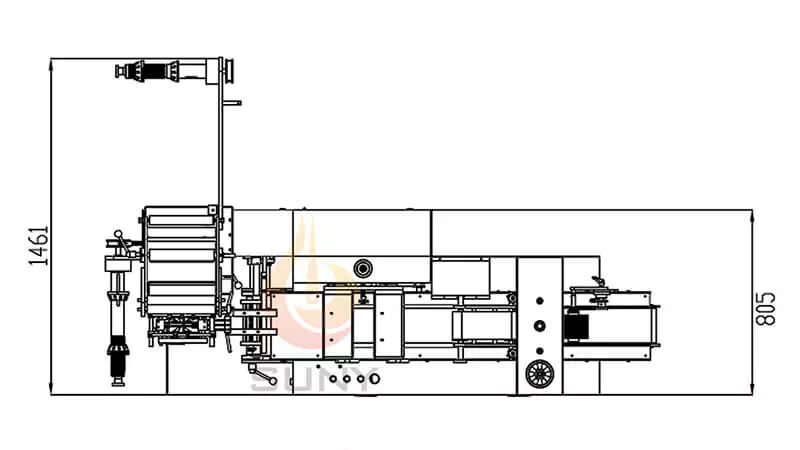

| Dimension | 2100*1500*1600mm |
| Material of Wet Wipes | Spunlace non-woven fabric |
| Parent Roll Specification | Maximum diameter: 1150mm, Width: (80-280) mm |
| Package Dimensions | (50-170)*(50-100) mm |
| Packaging Material Specification | Diameter 350mm, width: (80-260) mm |
